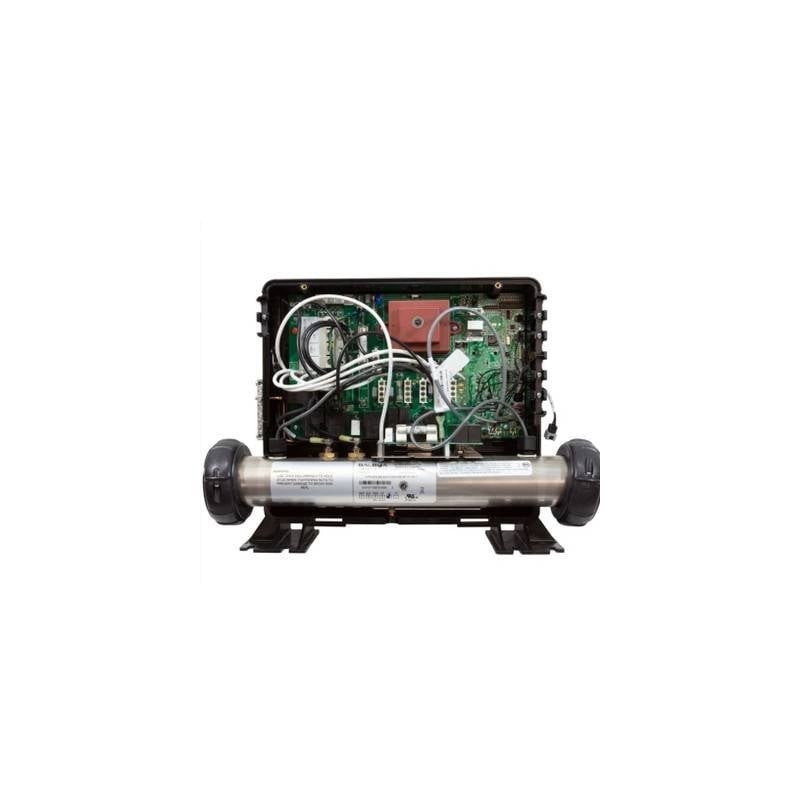

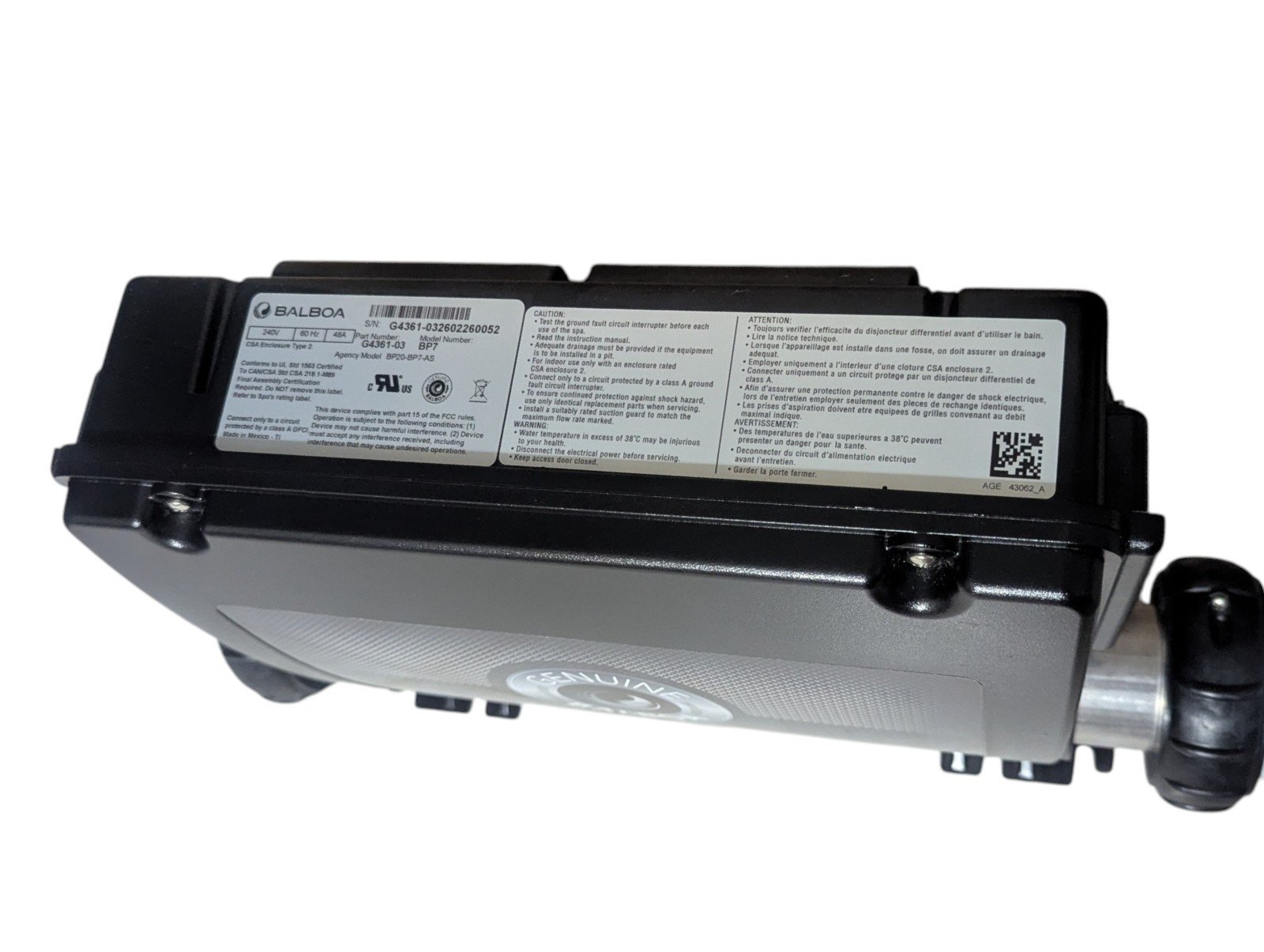

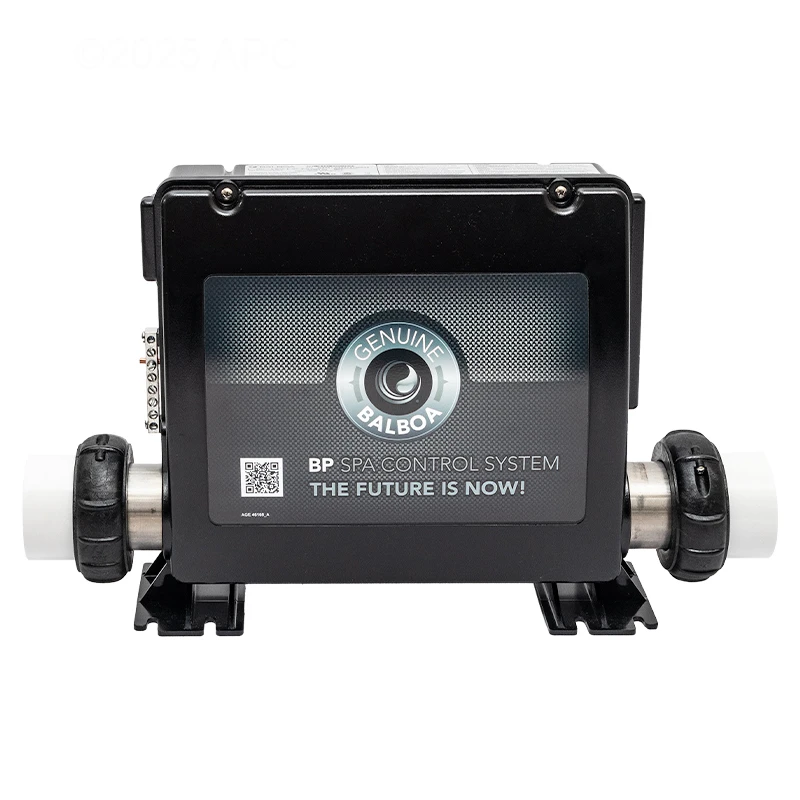

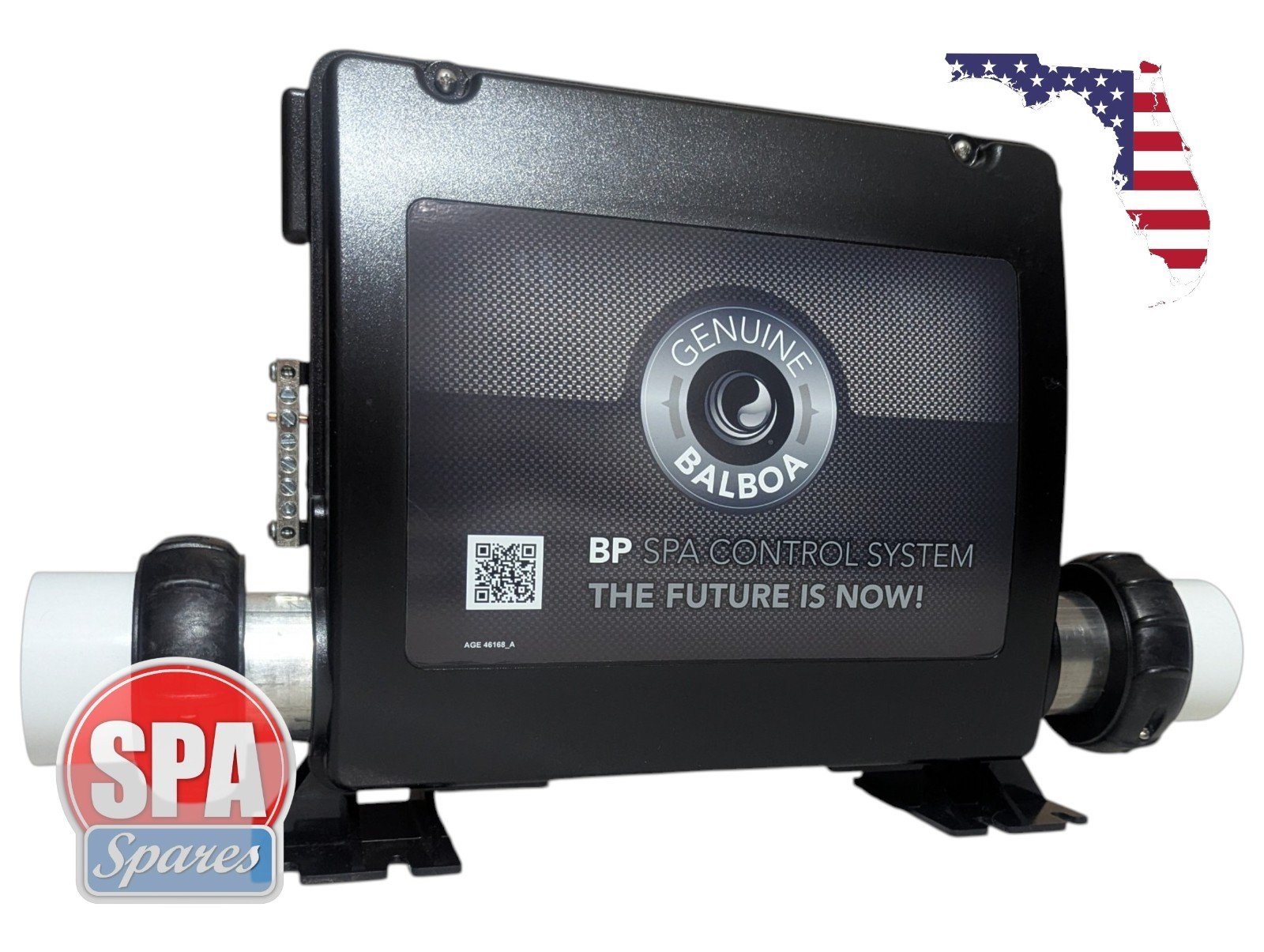

Balboa BP7 Spa Pack 4kW Universal G4361 Hot Tub Control Box Retrofit 230v (Control ONLY)

Description

New Balboa BP7 spa pack control system G4361 with 4kW plug n click heater included.

Can operate up to 4 pumps.

Number Of Appliances 4

Manufacturer Balboa Water Group

Model BP7

Supply Voltage 230v – 3 Wire, 230v – 4 Wire

Heater Type Fixed – Bottom

Heater Wattage 4.0kW

Topside Included None

Circ Pump Ready Optional 115v/230v

Auxiliary Topside Ready Yes

Fiber Optic No

Accessory Ready Yes

Wi-Fi Compatible Yes

50/60 HZ 50Hz, 60Hz

Works with TP400, TP600, TP800, TP900, Spa Touch Balboa control panels.   Accommodates plug type: black molex Balboa plug.  Control panels sold separately as needed.

Control System Details:

Main Circuit – 2- Speed Pump 120/240V

2nd Circuit – 1- Speed Pump 120/240V

3rd Circuit – 1- Speed Pump 120/240V

4th Circuit – 1- Speed Pump 120/240V

Spaside Control – Not Included

Heater Style – Straight/Fixed, Wattage – 4.0kW

System Voltage – 120/240V

Can run 1-4 pumps

FEATURES:

    7 relays allow BP7 to operate in 32 different setups, which can power a spa with 1-4 pumps

    BP7 can replace any Balboa BP System while using the existing topside that is already installed on the spa (some exceptions may apply)

    BP7 can replace any Balboa VS or EL System when you match it with any TP or SpaTouch topside panel (some exceptions may apply)

    BP7 can replace any Balboa or other brand’s non-low flow system when you match it with amy TP or SpaTouch topside panel (some exceptions may apply)

    Supports – ControlMySpa, Balboa Bluetooth Audio, Chromozon3, and Status Pro

    Dimensions: 17″L x 4.75″W x 11.5″H

With 7 relays, the BP7 has 32 different setups and can power a spa with 1-4 pumps, including Microsilk systems.

This universal replacement spa pack can also replace any Balboa BP System* while using the existing topside that is already installed on the spa.

Will replace any Balboa VS or EL System* when you match it with any TP or SpaTouch topside panel.

Will replace any Balboa or other brand’s non-low flow system* when you match it with any TP or SpaTouch topside panel.

  Finally a universal spa pack solution to replace many different packs used by different spa manufacturers.
