Description
Works with all TP topside control panels. If your BP board went out, consider this compact low cost replacement (if your spa meets the requirements, read below).

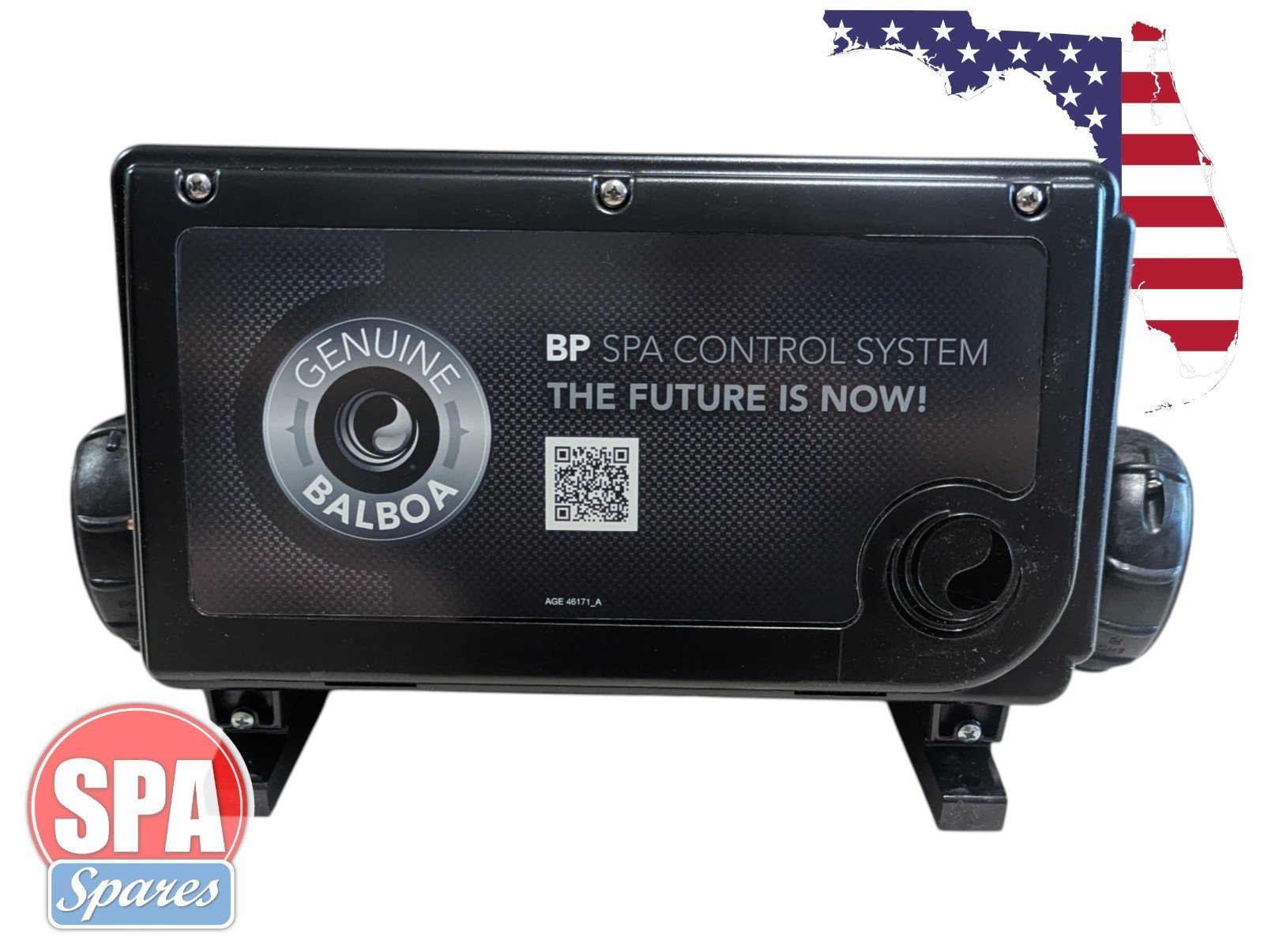

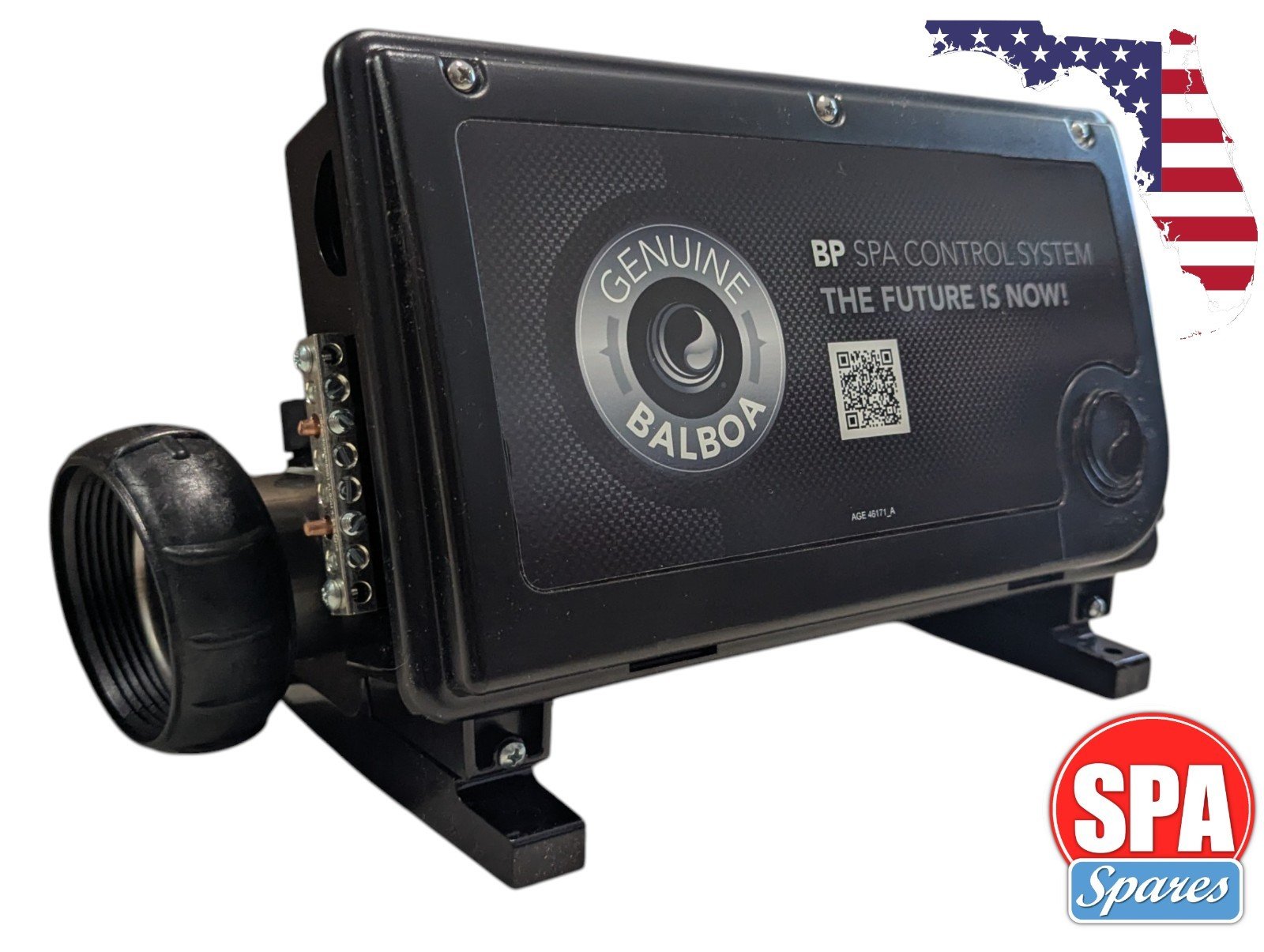

Balboa G4310 BP100G2 with 4.0kW Heater
Includes the 4.0W heater.
Components Supported: Pump1 + Blower or Pump2
Pump 1, Circ Pump and Ozone must be the same voltage
Topside Not Included
Number Of Appliances 2
Manufacturer Balboa Water Group
Model BP100
Supply Voltage 115v, 230v – 4 Wire
Heater Type Fixed – Bottom
Heater Wattage 1.0kW, 4.0kW
Topside Included None
Circ Pump Ready Optional 115v, Optional 230v
Accessory Ready Yes
Wi-Fi Compatible Yes
50/60 HZ 50Hz, 60Hz
Balboa BP100 Control System with 4.0kW Heater Replaces G4310, G4310-01, G4310-02 and G4310-0x.
FEATURES:
Lowest cost entry level BP System
Works with all of Balboa’s TP Panels
Works with all of Balboa’s SpaTouch™ Panels
Compact size with removable feet

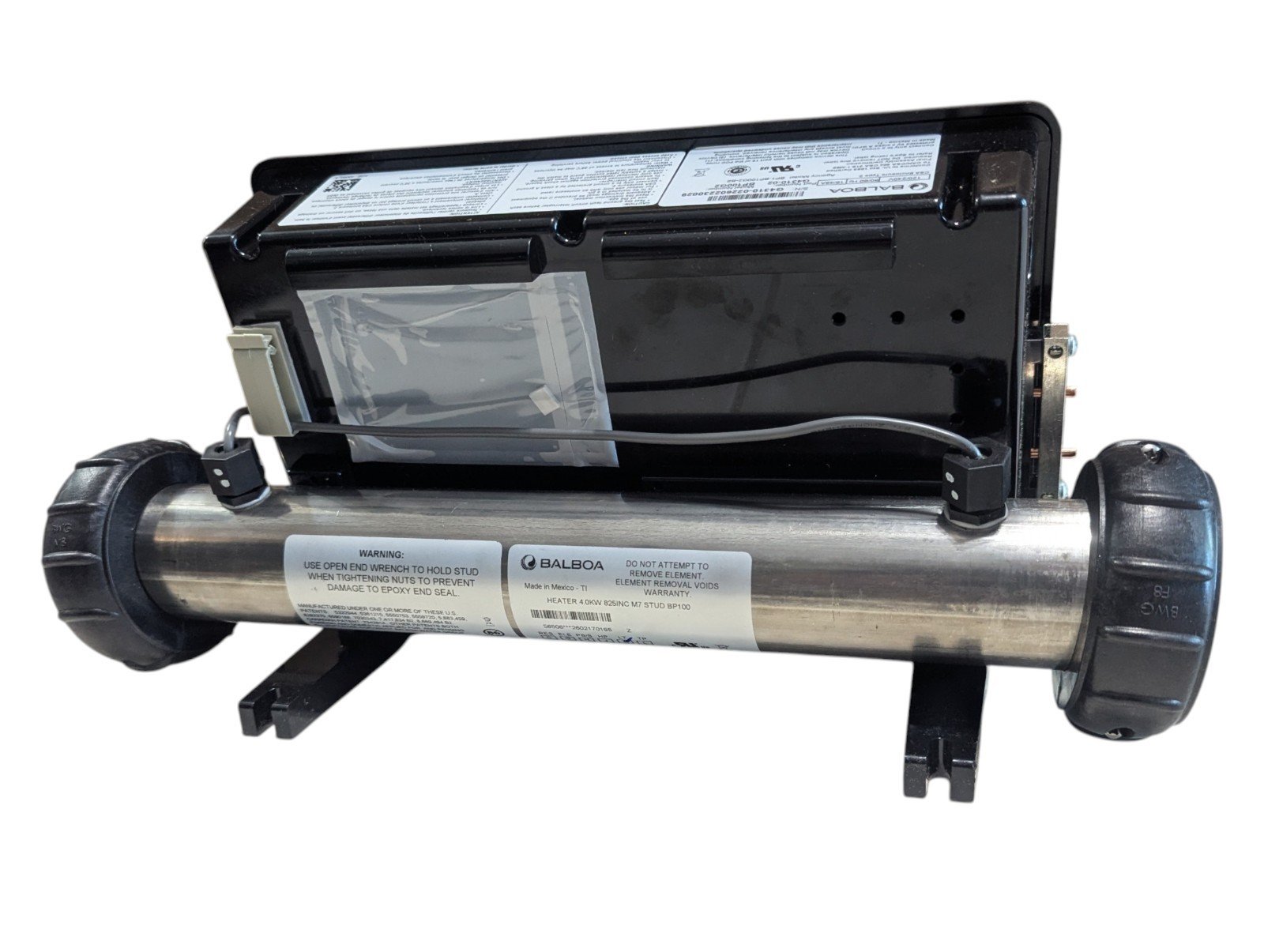

Built with premium materials, the attached spa heater is engineered for easy installation without any loose wires. All in one convenient package
The system can be mounted with feet or brackets (metal brackets are sold separately. P/N #32068)
Pump 1, Circ Pump and Ozone must be the same voltage.
BP systems automatically detect 50Hz vs 60Hz.
Warranty through manufacturer 1 year.
No returns on circuit boards for accidental purchases. Must be installed correctly by someone qualified.
